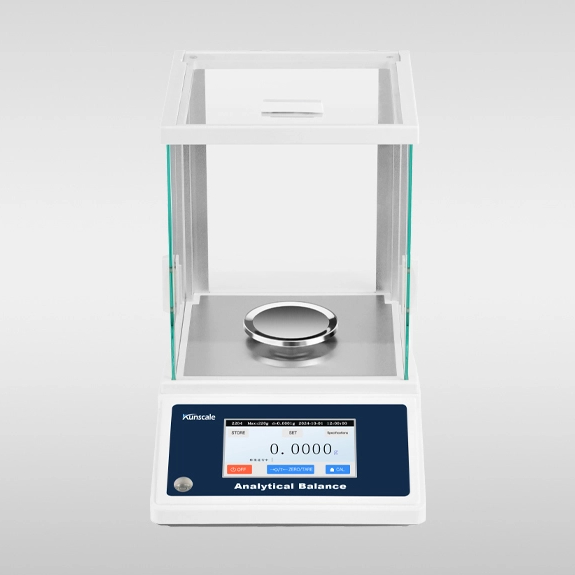

HS CODE: 9016001000
5 Inch touch panel
Electromagnetic force high precision load cell
Cast Aluminum Base
ABS shell /Large space glass windshield(ability to provide access from left, right or Top )
Stainless steel pan/Stainless steel countertop
Tare function/Counting/Percentage
15 Units to choose from conversion（g/mg/ct/oz/）
Chinese/English switching/Clock Settings
Overload alarm/Fault alarm
Level indicator/Adjustable leveling feet
Product Specification
| Model | YK-MEC1004 | YK-MEC1204 | YL-MEC2004 | YK-MEC2204 | YK-MEC3104 |
Max weighing(g) | 100g | 120g | 200g | 220g | 310g |
Division(g) | 0.1mg | ||||
Min weighing(g) | 10mg | ||||
Preheating time | 30min | ||||
Stable Time | ≤4s-5s | ||||
Display | Hd touch panel | ||||
Pan Size | Φ80mm | ||||
Operation temp | 22℃±2.5℃ | ||||
Repeatability | ±0.3mg | ||||
Liner error | ±0.5mg | ||||
Draft shield size | 210×210×230mm | ||||
Dimension | 360×220×330mm | ||||
Packing size | 505×348×490mm | ||||
Calibration | External calibration | ||||
Cal.weights | 100g F1 | 200g F1 | |||
Interface | RS232(standard) | ||||
Power Supply | 100-240V 50/60Hz Out DC 5V 3A | ||||
N.weight | 5.7 kg | ||||
G.weight | 7.3kg | ||||
